FR-NPB-C001 is a kind of new PP flame retardant, which is environment-friendly and less plate-out. It is widely used in
flame retardant ofhigh ethylene content(≥8%) PP Copolymer. With a low volume of addition(2.0-4.0%) and excellent
performance of resisting plate-out, it is unnecessary to add antimonous oxide. Talcum powder and Barium sulfate are also
optional as additions.
I. Main Features
1. Compared to TetraBromoBisphenol A ether and Tetrabromobisphenol S Bis, FR-NPB-C001, which has less bromine, is not
required to add antimonous oxide.
2. Talcum powder, Barium sulfate and other inorganic filler(10-20%) are optional as additions.
3. After baking for 300hoursat 70-80℃, the PP flame retardant produced with FR-NPB-C001, has excellent performance of
resisting plate-out.
4. Meets the requirement of IEC60695-2-13 GWIT 775℃(3.0mm) and IEC60695-2-12 GWFI 960℃(3.0mm).
5. The PP flame retardant produced with FR-NPB-C001 can meet the requirement of RoHS and REACH.
II. Quality Index

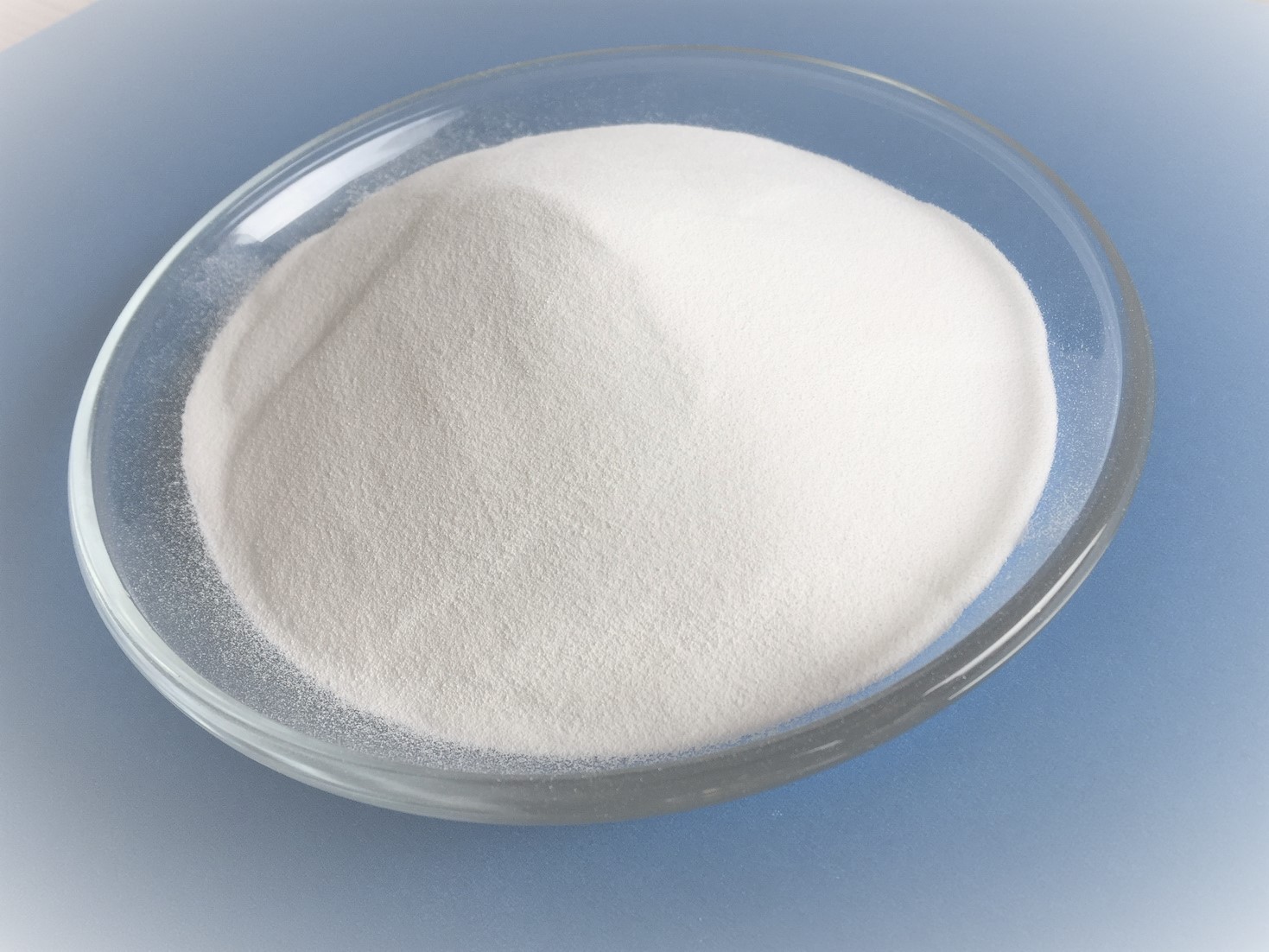

1. Appearance: Superfine white powder
2. Loss on drying:≦0.5%
3. Decomposition temperature TGA（2%）：260℃
Ⅲ. Toxicity
1. LD50(Orally taken by Laboratory rat)>5300mg/kg(non-toxic)
2. potential carcinogenicity：NO
3. skin irritation：NO
Ⅳ. Chief Application
System of No-filler PP flame retardant
|
Test Item |
Test Standard |
Unit |
1 |
2 |
|
high ethylene content(≥8%)PP |
Pipe-class Copolymer PP |
|||
|
2.0-3.5％ flame retardant |
2.0-4.0％flame retardant |
|||
|
Density |
ISO 1183 |
g/cm3 |
0.91 |
0.91 |
|
Melt Flow Index |
ISO 1133 |
g/10min |
5 |
1-2 |
|
Tensile Strength |
ISO 527 |
Mpa |
24 |
26 |
|
Elongation at Break |
ISO 527 |
% |
>100 |
>100 |
|
Bending Modulus |
ISO 178 |
Mpa |
1050 |
1150 |
|
Bending Strength |
ISO 178 |
Mpa |
28 |
31 |
|
Notch Impact Strength |
ISO 180 |
KJ/m2 |
11.0 |
15.0 |
|
Flame Retardant Rating |
UL94 |
3.20mm |
V-2 |
V-2 |
|
Flame Retardant Rating |
1.60mm |
V-2 |
V-2 |
|
|
Glowing Filament(GWIT) |
IEC 60695-2-13 |
℃(2.0mm) |
775 |
775 |
|
Glowing Filamentt(GWIT) |
IEC 60695-2-12 |
℃(2.0mm) |
960 |
960 |
Ⅴ. Features of flame retardant
1. Resisting plate-out: After baking for 300hoursat 70-80℃.
2. Meets the requirement of IEC60695-2-13 GWIT 775℃(3.0mm) and IEC60695-2-12 GWFI 960℃(3.0mm).
3. Changing the current situation of market that low additives flame retardant is unavailable for homopolymerize PP,
Copolymer PP and filled PP in the same time.
Ⅵ. Notes
1. Avoid calcium carbonate filler, which can interfere with the flame retarding feature.
2. Accurate temperature control is required to avoiding local overheating and causing volatilization in advance. Suggested
processing temperature: 170-170-170-170-180-180-180- 180℃
3. A little polypropylene powder is suggested as additive for uniform mixing and dispersing.
4. Assembled screw elements should use weak shear to avoiding degrading of material.
Ⅶ. Packaging
Paper-poly or PP woven bag: 25kg/pack
Remarks: high ethylene content(≥8%) Copolymer PP, such as: PP SP179, PP K9010 and PP AW191 etc.
